Product Name: | Q Switched ND YAG Laser | Repetition Rate: | 1-6Hz Adjustable |
---|---|---|---|
Pulse Energy: | 500 To 1200mj | Wavelength: | 1064nm&532nm |
Electrical Requirements: | 100/110V, 50~60HZ OR 230~260V, 50~60HZ | Cooling Systems: | Air Cooling + Water Circulation + Car Pump |
High Light: | nd yag laser tattoo removal machine,Q Switch Laser Tattoo Removal Machine |

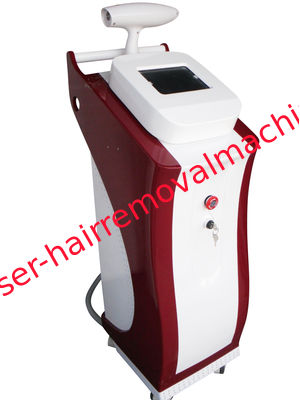

532nm Q Switched ND YAG Laser for Pigmentation / Red Tattoo Removal CE Approval
Q Switch Yag Laser Tattoo Removal Machine to Black Nevus, Age Pigment, Birthmark Removal
Applications of ND YAG Q SWITCH Laser Tattoo removal :
1) Removal tattoo, eyeliner, eye brow, remove black, red, blue, and all kinds of color pigment,
2) Remove dermis spot, fleck, black nevus, age pigment, birthmark and Nevus of Ota
3) The 1064nm wavelength mainly for black, blue, cyan pigment .tattoo removal
4) The 532nm wavelength mainly for red, coffee, brown pigment. Tattoo removal
Features&Advantages:
1) color touch screen . big energy output
2) adjustable spot
3) Infrared ray aiming indicator .
4) Water-flow monitor
5) Water flow and temp monitor
6) Plug and play function
7) CE&CE Medical approved, the production processes are according to ISO13485, 93/42/EEC standards .
Theory
Yttrium-Aluminum-garnet (Nd: YAG) laser. The laser treatment of pigmented lesions and tattoos are based on principle of selected photothermolysis. Selective thermolysis can be applied towards the removal of tattoos. The energy delivered by a number of different lasers is targeted towards the carbon particles or dyes that are found in skin tattoos, allowing selective destruction of the foreign pigment while minimizing damage to the surrounding skin.
Technical parameter:
Wavelength |
1064nm&532nm |
Spot Diameter |
1~6mm |
Width of Pulse |
10ns |
Pulse Energy |
500 to 1200mj |
Repetition Rate |
1-6Hz adjustable |
Operation Interface |
6 dual color LCD |
Power |
1000W |
YAG Bar Size |
6 |
Aiming Beam |
Guided by red light |
Cooling Systems |
Air Cooling + Water Circulation + car pump |
Electrical Requirements |
100/110V, 50~60HZ OR 230~260V, 50~60HZ |
Dimension |
59cm*46cm*119cm(L*W*H) |
Gross Weight |
68kg |
